What is Fiber laser marking machine
By using a focused beam of light to mark the surface of a material. When the beam interacts with the material’s surface, it alters the material’s properties and appearance. This concentrated beam targets only a specified area, allowing the laser marking machine to create precise, high quality, high-contrast marks that are easy to read or scan on virtually any surface. This feature makes laser marking ideal for applications where accuracy and permanency are critical to success.
Fiber laser marking machine series

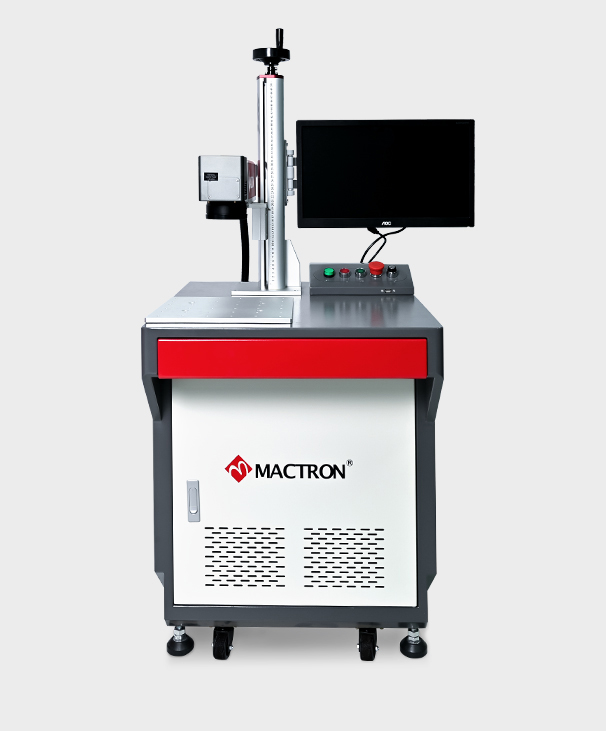

Standard fiber laser marking machine
- Integrated design, suitable for all kinds of complex marks.
- Directly using when got it, no damage to the product.

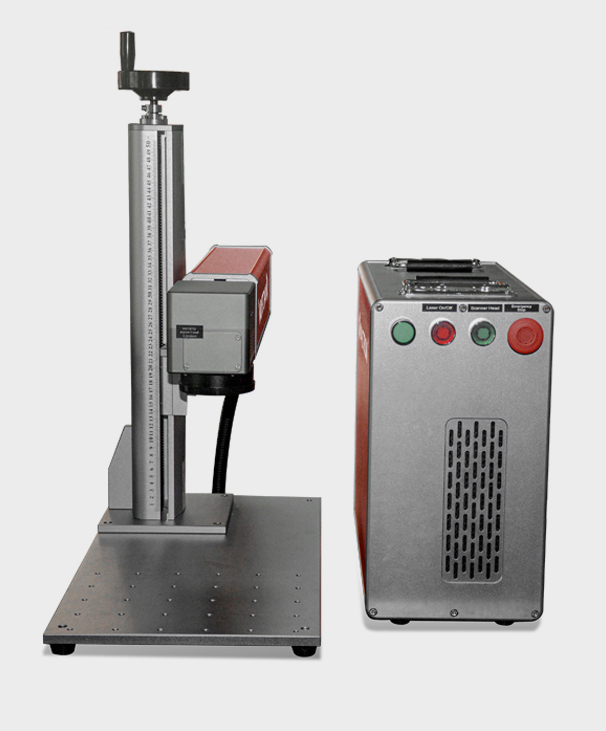

Portable fiber laser marking machine
- Suitable to small volum space.
- Save space and shipping cost, easy to move, and put on the desk

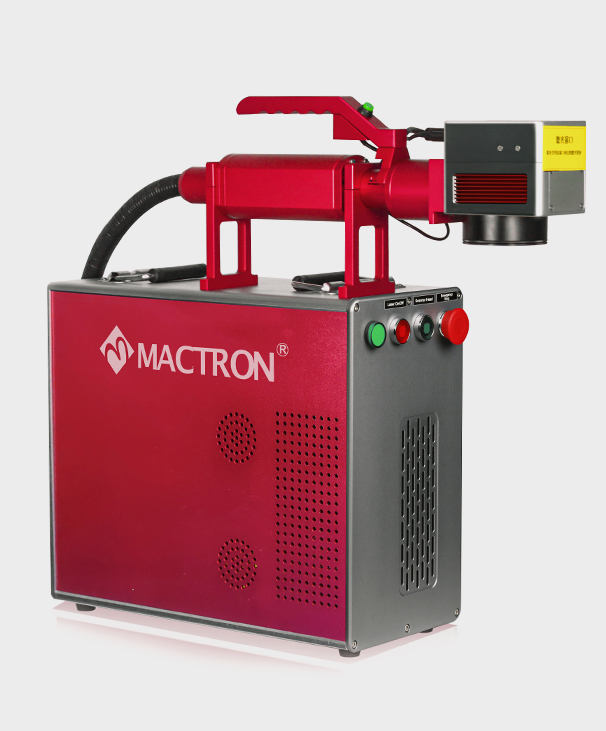

Hand-held fiber laser marking machine
- Smart design and easy to carry and operate.
- Easily marking on objects surface.

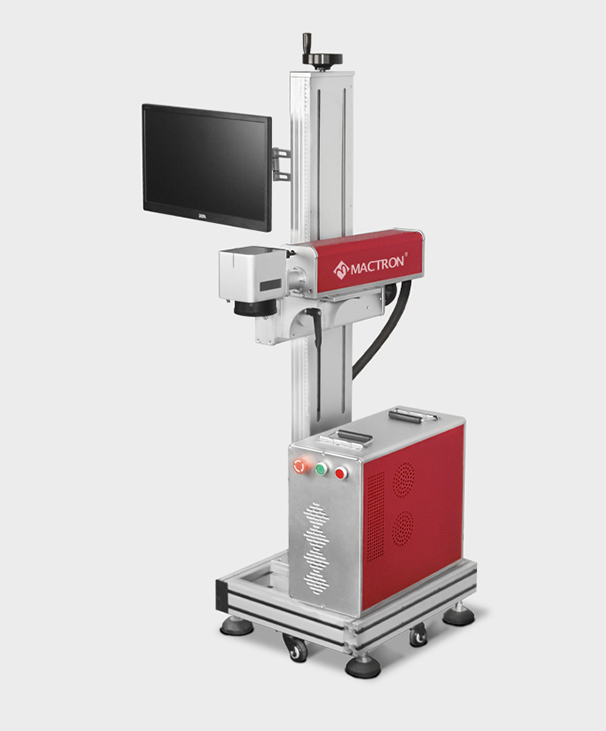

Online fiber laser marking machine
- Special online laser marking machine for automatic production line.
- High eficiency and low operating costs.
Fiber laser marking machine is with high quality and high performance. Based on the needs of domestic and foreign markets, the machine is equipped with core optical devices, including fiber laser and scanning galvanometer imported from world famous brands. They enhance the performance and stability, and greatly lower the failure rate.
Marking has non-touched process, permanent effect, humanized operation, and stable running, lifetime up to 100,000 hours.
Fiber laser marking machine is armed with our self-developed high-speed marking control card and powerful software, compatible software output of AutoCAD, CorelDRAW, AI etc. It can realize automatic edition and correction of characters, signs, graphs images, bar codes, two-dimensional codes, automatically increased serial numbers. It can support various file formats like PLT, PCX, DXP, BMP, JPG, and so on. It may use TTF fonts directly. 24-hour non-stop running makes it meets the demand of massive on-line and off-line industrialized production.
Fiber laser marking technology

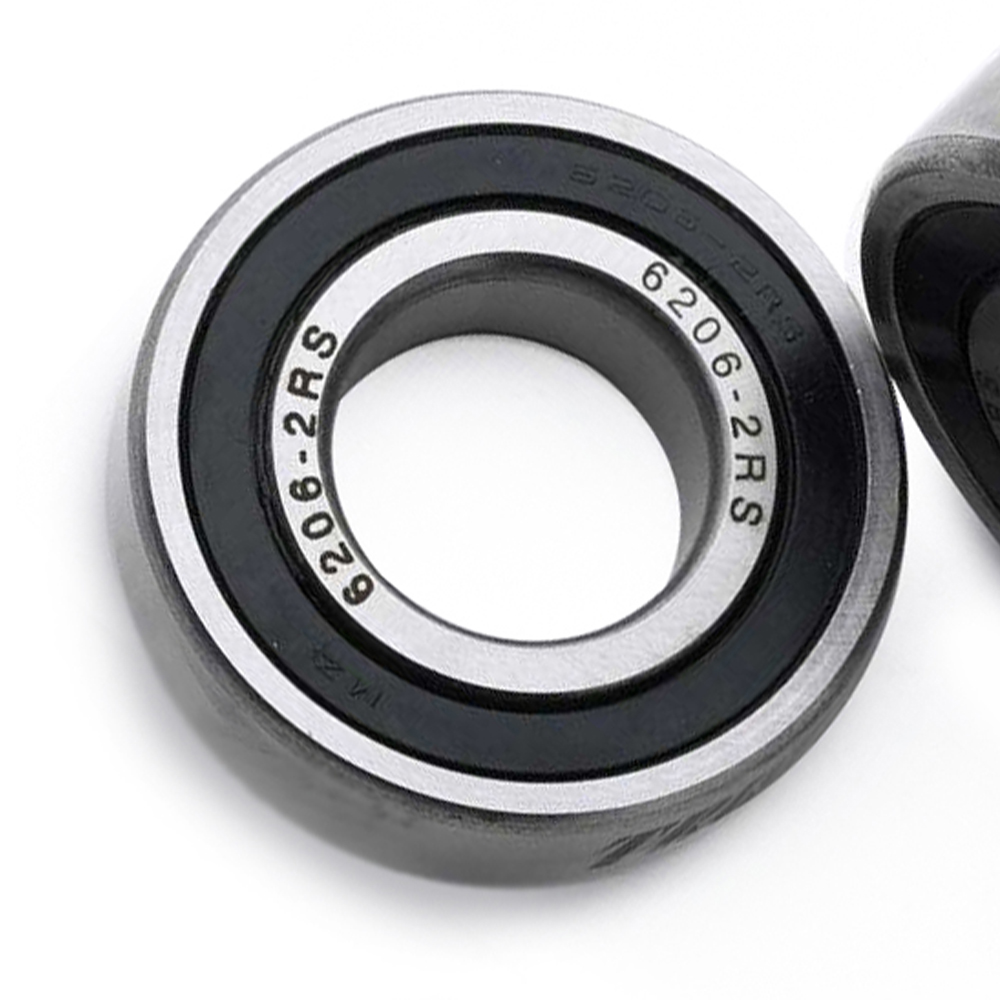

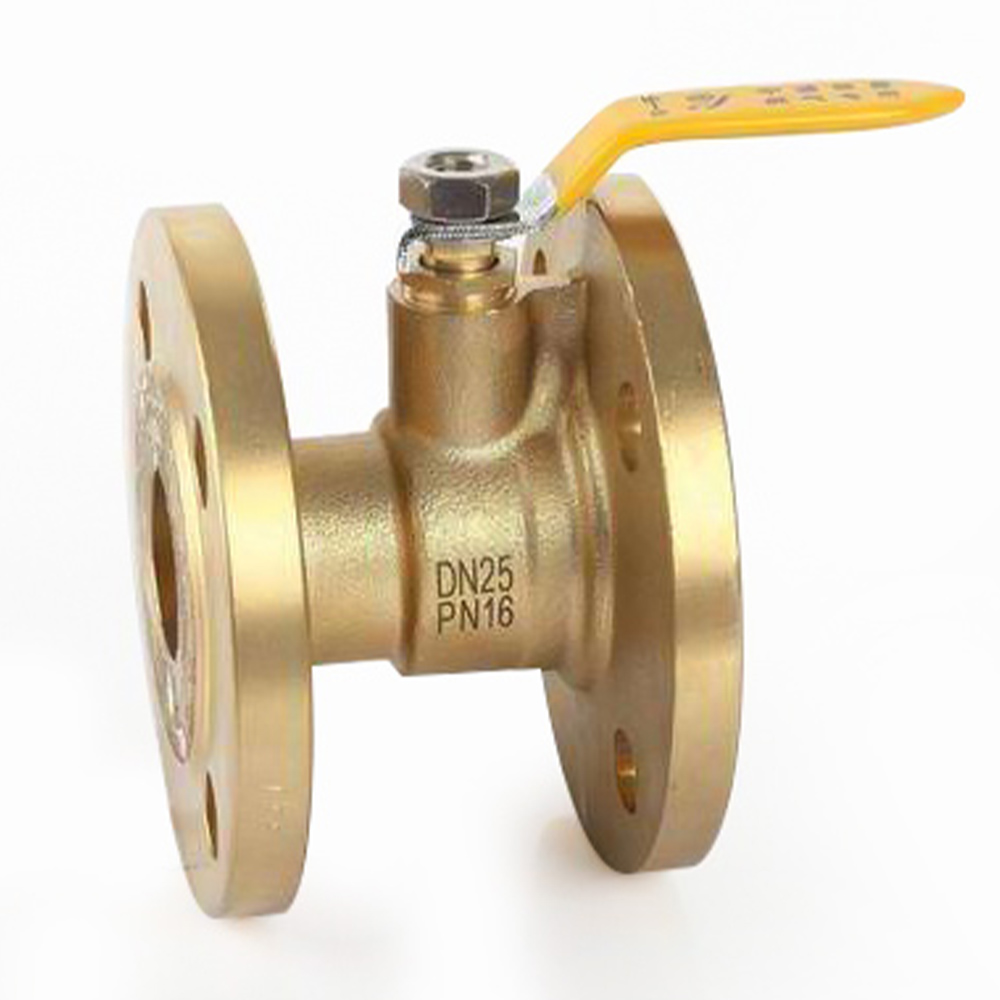

Laser marking can be automated and Laser marking is easy to operate with automation system and processed at high speeds, while leaving permanent traceability marks on a range of materials, It is suitable to all kinds of metal and partial non-metallic material, High hardness alloy, oxide, electroplating, coating, ABS, epoxy resin, oil film, engineering plastics, etc.
Application of Fiber Laser Marking Machine

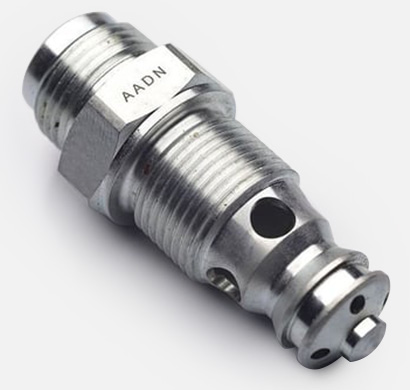

Fiber laser marking machine for tools

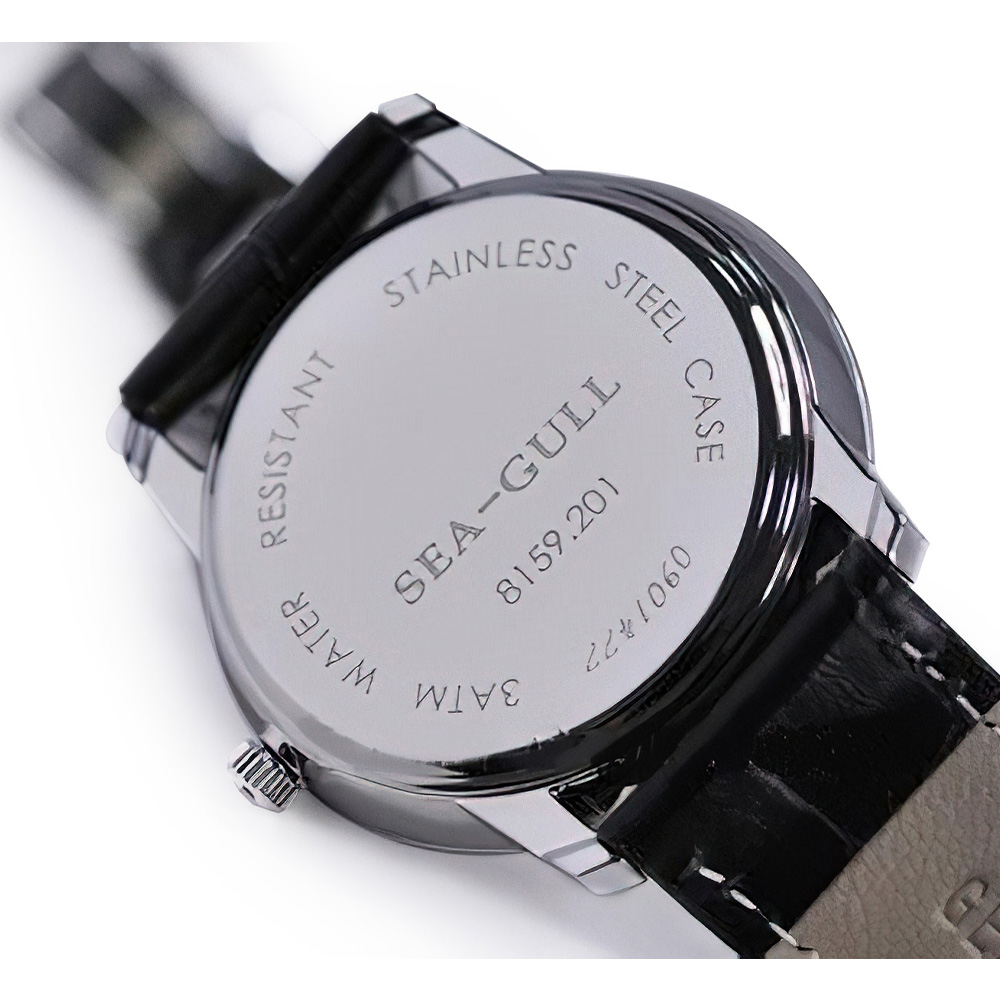

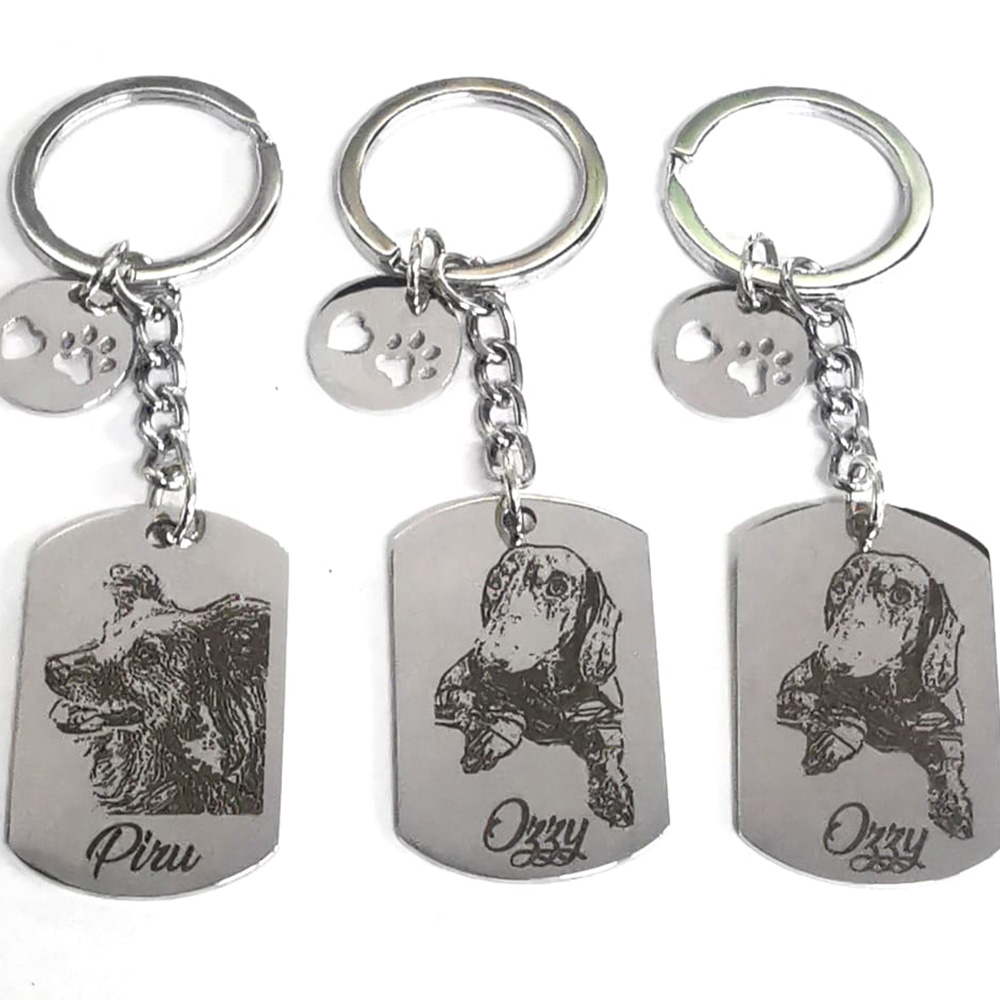

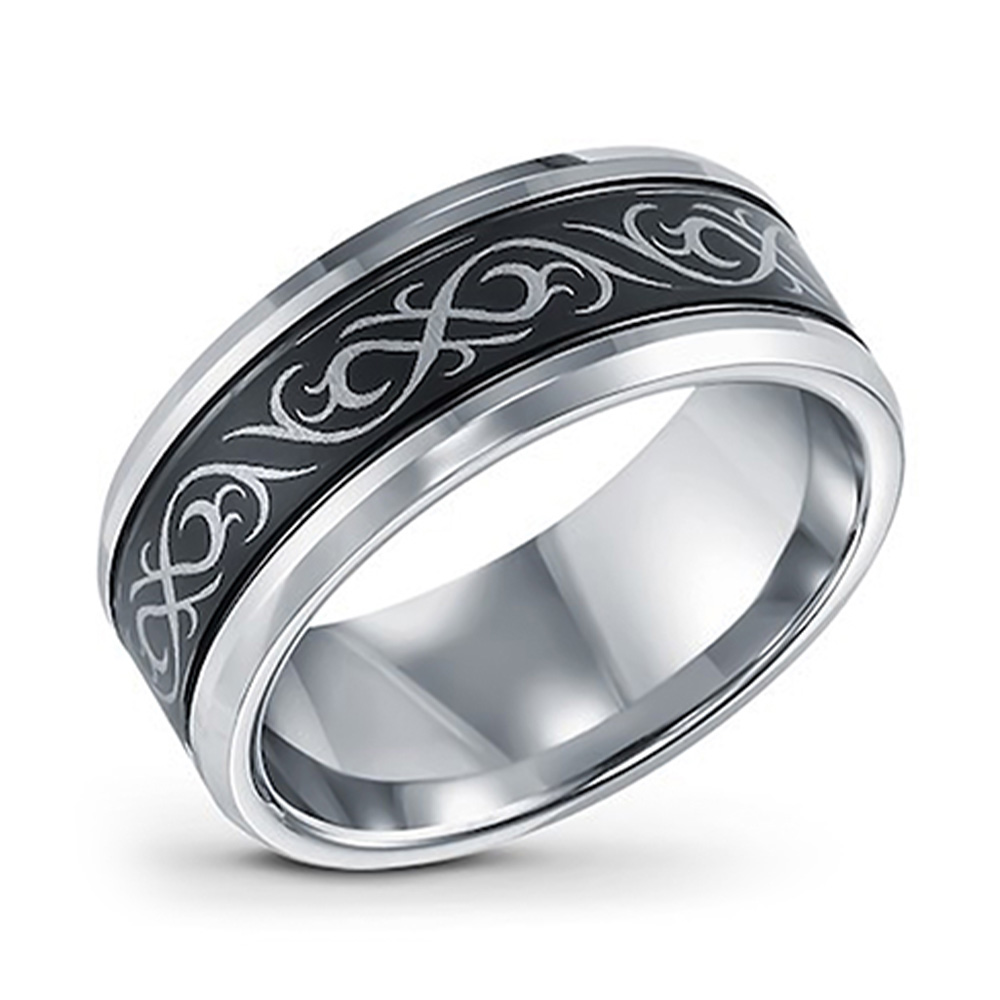

Fiber laser marking machine for Jewelry

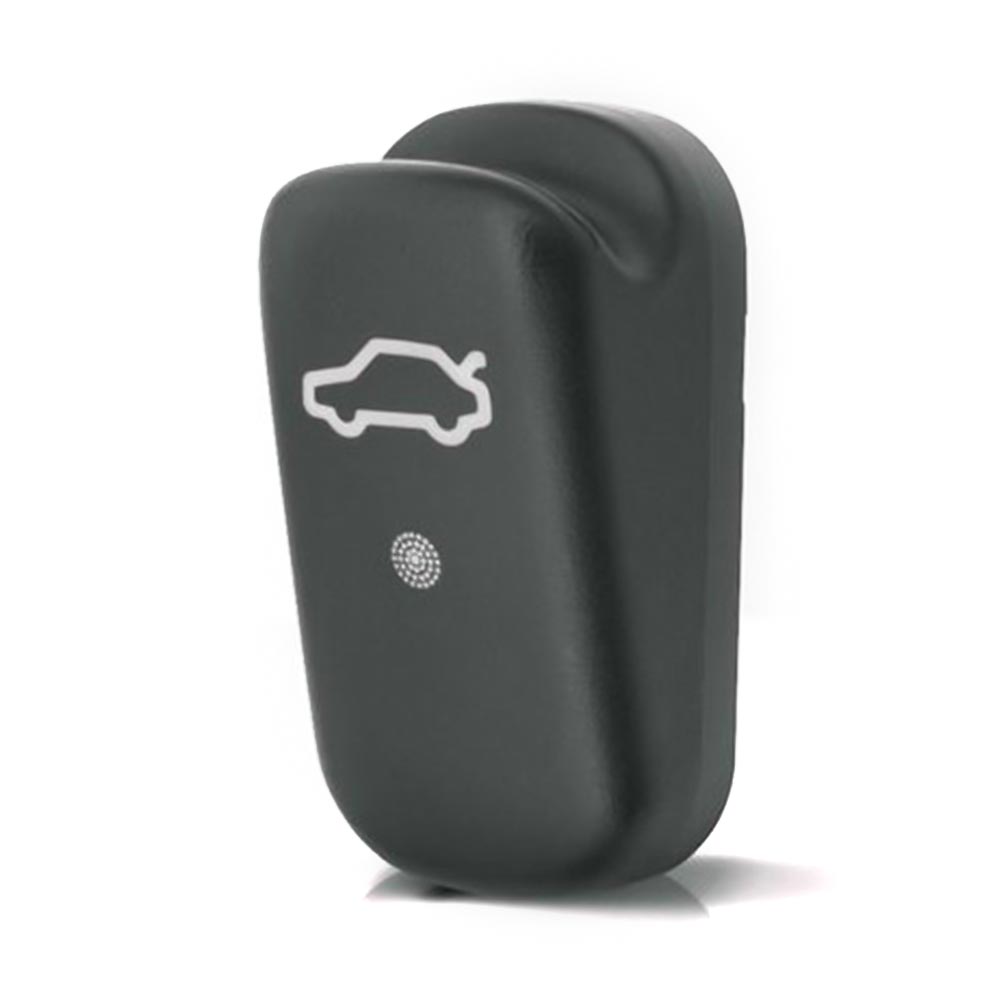

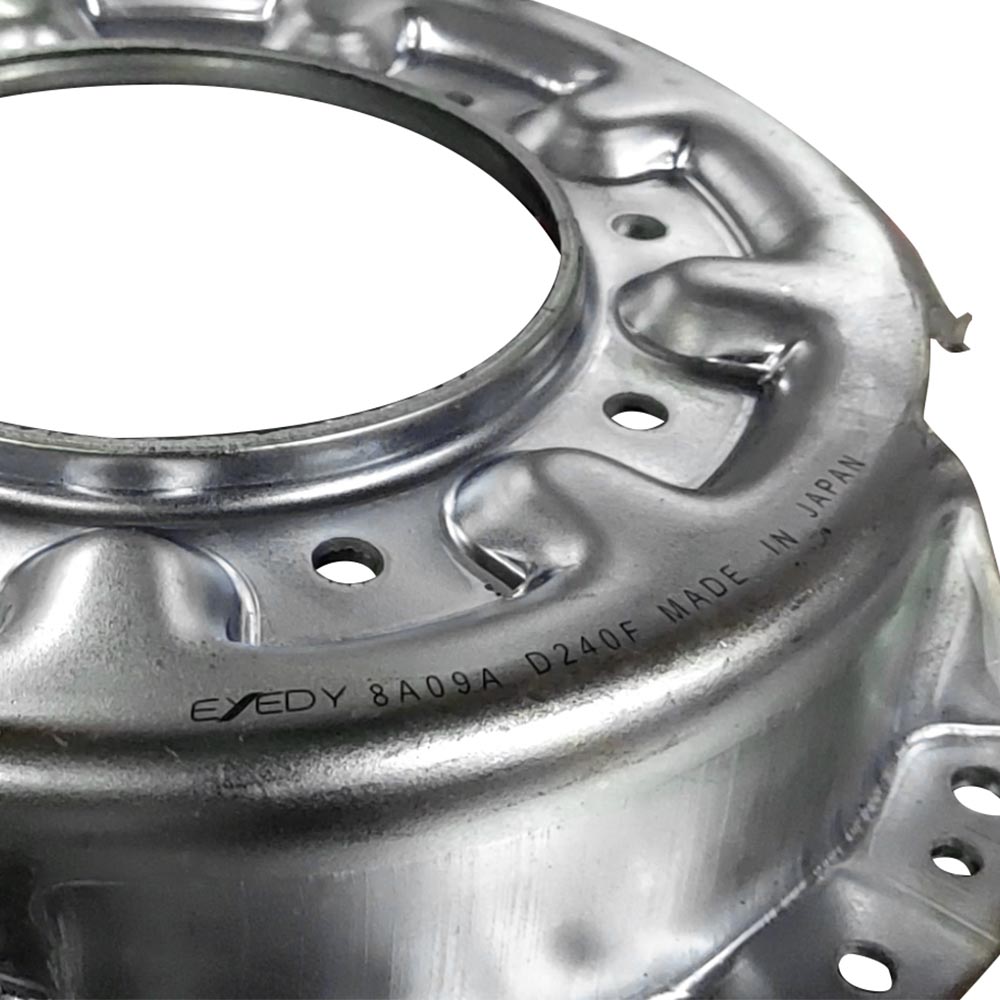

Fiber laser marking machine for automotive industry

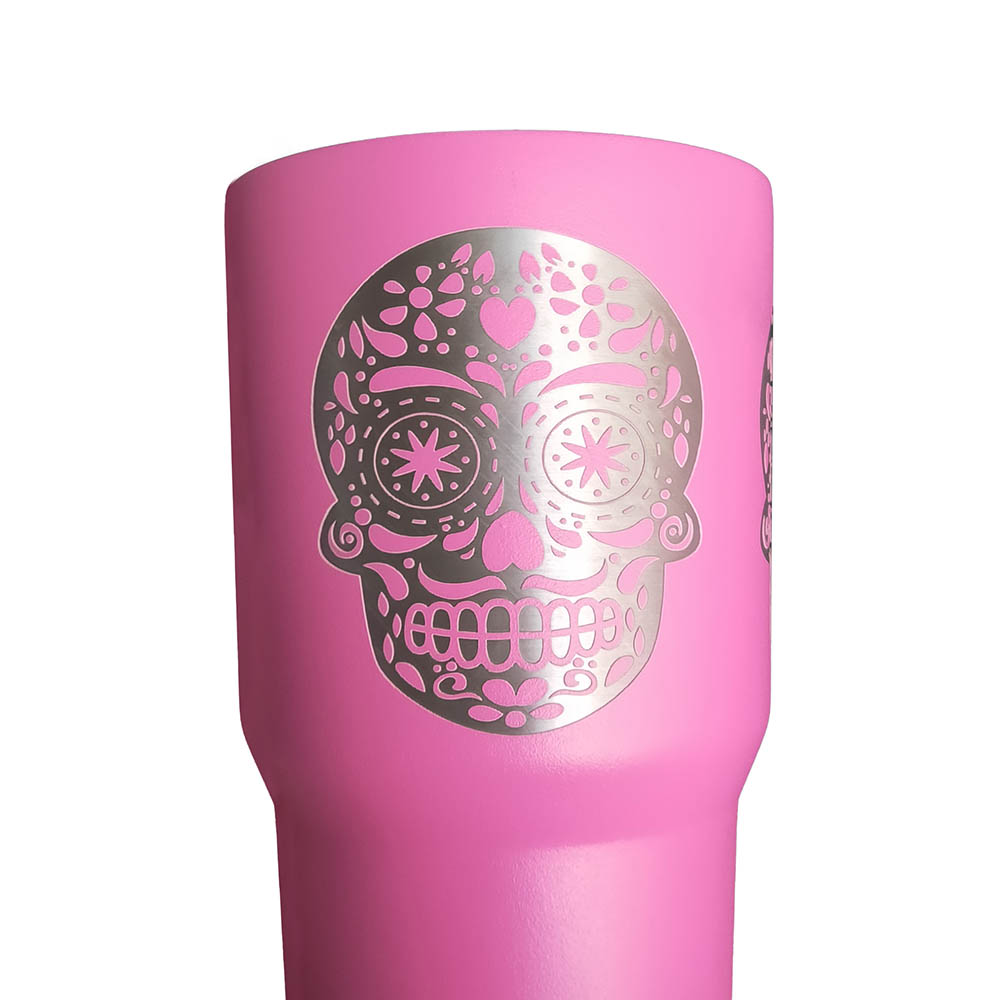

Fiber laser marking machine for Kitchenware
Why Choose MACTRON
First Chinese company to adopt German Siemens electrical system
Mactron laser marking system adopts German Siemens electrical system, which is safe, reliable and stable, and conforms to European Union standards; safety warning signs and laser protective glasses conform to European Union CE standards; products conform to European laser safety standard EN207, and the company has passed ISO9001 , SGS and TUV , etc.
Self-designed industrial-level laser system
Mactron laser marking system adopts self-designed industrial-level floor-standing cabinets and self-developed high-speed scanning galvanometer system, with good product consistency, strong anti-interference, high-performance operation, and high reliability.
Self-Developed MacMark Laser Software
Mactron laser marking system is equipped with the self-developed MacMark laser special software and embedded DSP industrial control system, get rid of traditional Windows crashes, poisoning, driver loss, parameter loss and other unstable problems. The IO interface can be customized to support secondary development.
Complete industrial laser equipment service package
Provide a complete industrial laser equipment service package (including: hardware instructions, software operation manuals, operation videos, technical parameters, daily maintenance, etc.), which can help you quickly start using.
Strict laser safety standards
Mactron laser marking system is equipped with safety cover and software alert reminder,clear safety warning signs and port labels; it also has laser protective glasses, protective masks, and protective gloves, further guarantee the safety of operators.
Techinical
Wavelength:1064nm
Beam Quality: <1.6M2
Frequency Range: 20-200Khz
Repetition Precision: ±0.01MM
Power Source: AC 110/220V±10%, 50/60Hz
Gross Power: < 500W
Processing Area: 70*70MM,110*110MM,175*175MM, 200*200MM, 300*300MM (Optional)
Marking Speed: ≤8000MM/S
Marking Depth: ≤2MM
Min. Line Width: 0.01MM
Min. Character: 0.2MM
Cooling Mode: Air Cooling
Lifting Height: 100~500MM (Optional/ 700MM)
Graphic Formats Supported: PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG
Work Environment: Temp: 10~40 ℃,Humidity : 5 ~85 %,Clean, Less Dust
